Graphics

In this article, we will discuss the Cosmos Graphics Subsystem (CGS) on Cosmos Gen3: how to get a drawing surface and put shapes, text and images on the screen. CGS is based on the abstraction of a Canvas, an empty space you draw on. It is a drawing layer, not a widget toolkit: there are no windows or buttons, but everything you need to build them.

The main differences if you come from Gen2:

	Gen2	Gen3
Canvas API	Cosmos.System.Graphics	Same API, in Cosmos.Kernel.System.Graphics
Video drivers	VBE, VGA, VMWare SVGA II	Limine-provided framebuffer (x64 and ARM64)
Display()	Required on double-buffered drivers	Always required: the canvas is double-buffered
Video mode	Switchable at runtime	Fixed at boot by the bootloader
Text console	Separate VGA text mode	Rendered on the same canvas
Colors	System.Drawing.Color	System.Drawing.Color

If you find bugs or something abnormal, please submit an issue on our repository.

Enable graphics in your kernel

Graphics support is behind a feature switch. Make sure your kernel's .csproj does not turn it off (it defaults to true):

<PropertyGroup>
  <CosmosEnableGraphics>true</CosmosEnableGraphics>
</PropertyGroup>

These are the usings the snippets below rely on:

using System.Diagnostics;
using System.Drawing;
using System.IO;
using System.Numerics;
using Cosmos.Kernel.System.Graphics;
using Cosmos.Kernel.System.Graphics.Fonts;
using Cosmos.Kernel.System.Mouse;

Getting a canvas

Canvas.GetFullScreen() returns the canvas backed by the screen, the framebuffer the bootloader set up at boot:

Canvas canvas = Canvas.GetFullScreen();

Console.WriteLine("Canvas:     " + canvas.Name);
Console.WriteLine("Resolution: " + canvas.Width + "x" + canvas.Height);
Console.WriteLine("Refresh:    " + canvas.RefreshRate + " Hz");

Four things to know before you start drawing:

• The resolution is fixed at boot. Unlike Gen2, requesting a different Mode does not reprogram the video card: the canvas always has the resolution the bootloader chose. Use canvas.Width and canvas.Height instead of assuming one.
• Nothing appears until you call Display(). The canvas is double-buffered: every drawing call goes to a back buffer, and Display() swaps the finished frame to video memory. Draw the whole frame, then call Display() once; that is also what keeps animations flicker-free.
• Drawing outside the canvas is safe. Every primitive clips: pixels outside 0..Width-1 and 0..Height-1 are dropped, a shape that straddles an edge is drawn up to it, and nothing throws. Coordinates never need clamping before a call.
• Console shares the screen with you. There is no separate text mode: Console.WriteLine is itself rendered on the full-screen canvas (and calls Display() on every write). Once you start drawing, stop writing to Console: the next write would paint text right over your graphics. This also means an uncaught exception prints over whatever you drew, which, unlike Gen2 where the screen just froze, at least tells you what went wrong.

Drawing shapes

The canvas offers the classic set of primitives (points, lines, rectangles, circles, ellipses, arcs, triangles and polygons), most in outlined and filled variants:

Canvas canvas = Canvas.GetFullScreen();

canvas.Clear(Color.MidnightBlue);

/* A single point */
canvas.DrawPoint(Color.White, 100, 100);

/* Lines: horizontal, vertical and diagonal */
canvas.DrawLine(Color.GreenYellow, 250, 100, 400, 100);
canvas.DrawLine(Color.IndianRed, 350, 150, 350, 250);
canvas.DrawLine(Color.MintCream, 250, 150, 400, 250);

/* Outlined and filled rectangles */
canvas.DrawRectangle(Color.PaleVioletRed, 450, 100, 120, 80);
canvas.DrawFilledRectangle(Color.Chocolate, 450, 220, 120, 80);

/* Circles and ellipses */
canvas.DrawCircle(Color.Chartreuse, 130, 200, 40);
canvas.DrawFilledCircle(Color.MediumOrchid, 130, 320, 40);
canvas.DrawEllipse(Color.DeepSkyBlue, 300, 350, 60, 30);

/* An arc: angles are in degrees */
canvas.DrawArc(Color.CadetBlue, 500, 400, 50, 50, 90, 270);

/* Triangles and polygons */
canvas.DrawTriangle(Color.Gold, 600, 100, 650, 200, 550, 200);
canvas.DrawPolygon(Color.MediumPurple,
    new Point(650, 300), new Point(720, 340), new Point(700, 420), new Point(620, 400));

/* Swap the finished frame to the screen */
canvas.Display();

Colors are plain System.Drawing.Color values, so the full named palette (Color.MidnightBlue, Color.Chartreuse, ...) and Color.FromArgb(...) are available. Colors with an alpha channel below 255 are blended with the pixel already on the canvas.

Drawing text

Text rendering uses PSF (PC Screen Font) bitmap fonts, the format the Linux console uses, in both its PSF1 and PSF2 versions. A 16x32 Spleen font is built in as PCScreenFont.DefaultFont, and PCScreenFont.LoadFont(byte[]) loads any other PSF font at runtime.

There are plenty of ready-made PSF fonts to download:

• The Zap Group's console fonts: classic 8x16 PSF1 fonts (zap-light16.psf, zap-vga16.psf).
• Terminus: PSF2 in many sizes; most Linux distributions already ship it under /usr/share/consolefonts/ as .psf.gz files (decompress with gunzip first, the kernel reads plain .psf).
• Spleen: PSF2 releases from 5x8 up to 32x64.

A font is just a file, so the easiest way to ship one is on the FAT disk from the File System article. Here zap16.psf is Zap Light (PSF1) and term24.psf is Terminus 12x24 (PSF2), copied onto the disk under FAT-friendly names:

Canvas canvas = Canvas.GetFullScreen();

canvas.Clear(Color.MidnightBlue);

/* The built-in 16x32 font */
Font font = PCScreenFont.DefaultFont;
canvas.DrawString("Hello Cosmos World!", font, Color.White, 100, 100);
canvas.DrawString("Spleen " + font.Width + "x" + font.Height + " (built in)",
    font, Color.GreenYellow, 100, 140);

/* Load a PSF1 font from the mounted disk... */
Font zap = PCScreenFont.LoadFont(File.ReadAllBytes("/mnt/zap16.psf"));
canvas.DrawString("Zap Light " + zap.Width + "x" + zap.Height + " (PSF1)",
    zap, Color.Gold, 100, 200);

/* ...and a PSF2 font */
Font terminus = PCScreenFont.LoadFont(File.ReadAllBytes("/mnt/term24.psf"));
canvas.DrawString("Terminus " + terminus.Width + "x" + terminus.Height + " (PSF2)",
    terminus, Color.DeepSkyBlue, 100, 240);

canvas.Display();

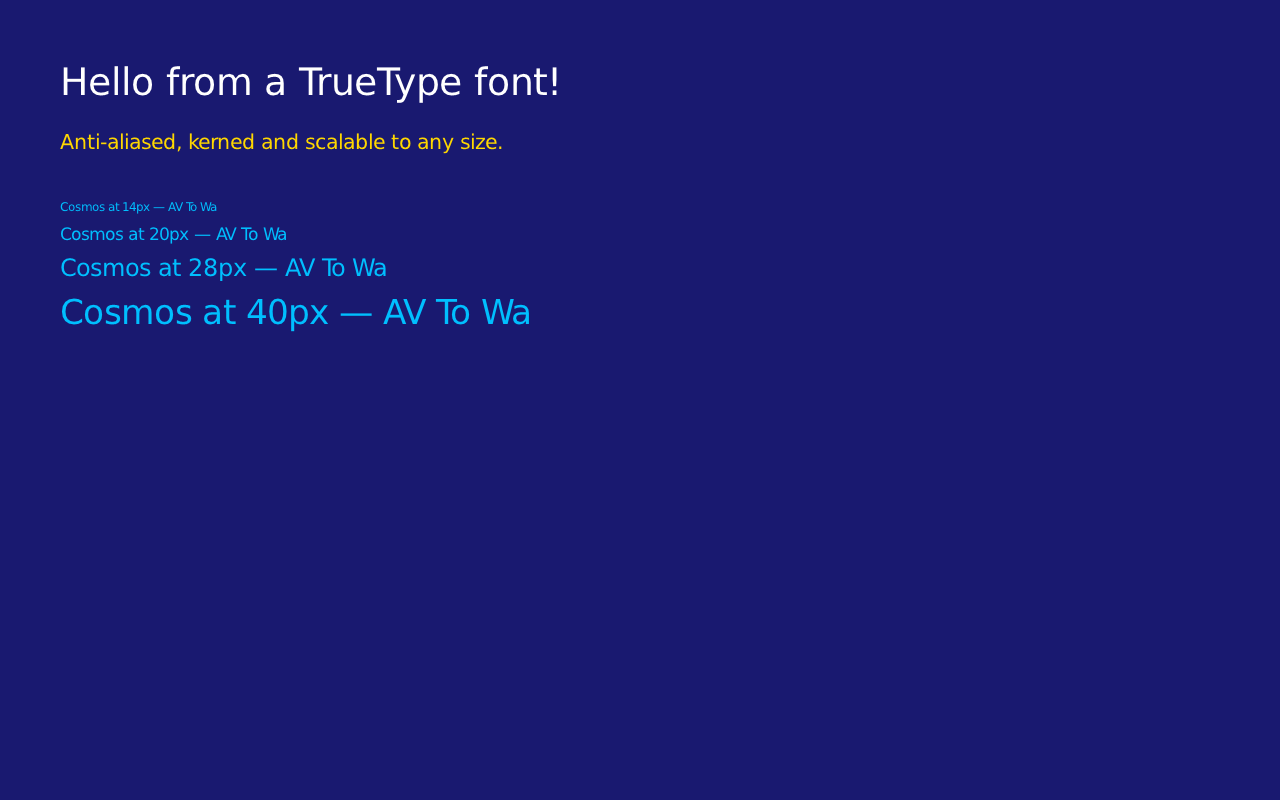

TrueType fonts

PSF fonts are bitmaps: one size, one cell, no curves. For real typography the TrueTypeFont class loads a .ttf file and rasterizes it at any pixel size, with anti-aliased edges, per-glyph widths and pair kerning. The parser and rasterizer are pure managed code (see the Credits page), so a malformed font file throws an exception instead of corrupting memory.

TrueTypeFont derives from Font, so it goes wherever a bitmap font goes: passed to the plain DrawString overload it draws at its SizePx (set in the constructor, 16 by default). The dedicated overload takes the size explicitly, and each (character, size) pair is rasterized once and cached, so drawing the same text again is cheap:

Canvas canvas = Canvas.GetFullScreen();

canvas.Clear(Color.MidnightBlue);

/* Load a TrueType font from the mounted disk */
TrueTypeFont dejavu = new TrueTypeFont("/mnt/font.ttf");

canvas.DrawString("Hello from a TrueType font!", dejavu, 44, Color.White, 60, 60);
canvas.DrawString("Anti-aliased, kerned and scalable to any size.", dejavu, 24, Color.Gold, 60, 130);

/* One font file, any size */
int y = 200;
foreach (int size in new[] { 14, 20, 28, 40 })
{
    canvas.DrawString("Cosmos at " + size + "px - AV To Wa", dejavu, size, Color.DeepSkyBlue, 60, y);
    y += dejavu.GetLineHeight(size) + 10;
}

canvas.Display();

The (x, y) you pass is the top-left of the text line, like the PSF overload. For layout, MeasureString(text, size) returns the width a string will occupy, GetLineHeight(size) the distance between the tops of two lines, and GetLineMetrics(size, out ascent, out descent, out lineGap) the underlying baseline metrics. Kerning comes from the font's legacy kern table; fonts that only ship GPOS kerning still render, just without pair adjustments.

Drawing images

Images are represented by the Bitmap class. You can build one in code from raw pixel data: each pixel is four bytes in B, G, R, A order:

Canvas canvas = Canvas.GetFullScreen();

canvas.Clear(Color.MidnightBlue);

/* A 2x2 bitmap: blue, green, red and white pixels (B G R A byte order) */
Bitmap bitmap = new Bitmap(2, 2, new byte[]
{
    255, 0, 0, 255,      // blue
    0, 255, 0, 255,      // green
    0, 0, 255, 255,      // red
    255, 255, 255, 255,  // white
}, ColorDepth.ColorDepth32);

/* Draw it pixel-for-pixel, then scaled up to 128x128 */
canvas.DrawImage(bitmap, 100, 100);
canvas.DrawImage(bitmap, 100, 150, 128, 128);

canvas.Display();

More usefully, Bitmap can load an uncompressed 24-bit or 32-bit BMP file through standard System.IO, for example from a FAT disk mounted as shown in the File System article:

/* logo.bmp is a 24-bit BMP on the FAT partition mounted at /mnt */
Bitmap logo = new Bitmap(@"/mnt/logo.bmp");

canvas.DrawImage(logo,
    (canvas.Width - logo.Width) / 2,
    (canvas.Height - logo.Height) / 2);

canvas.Display();

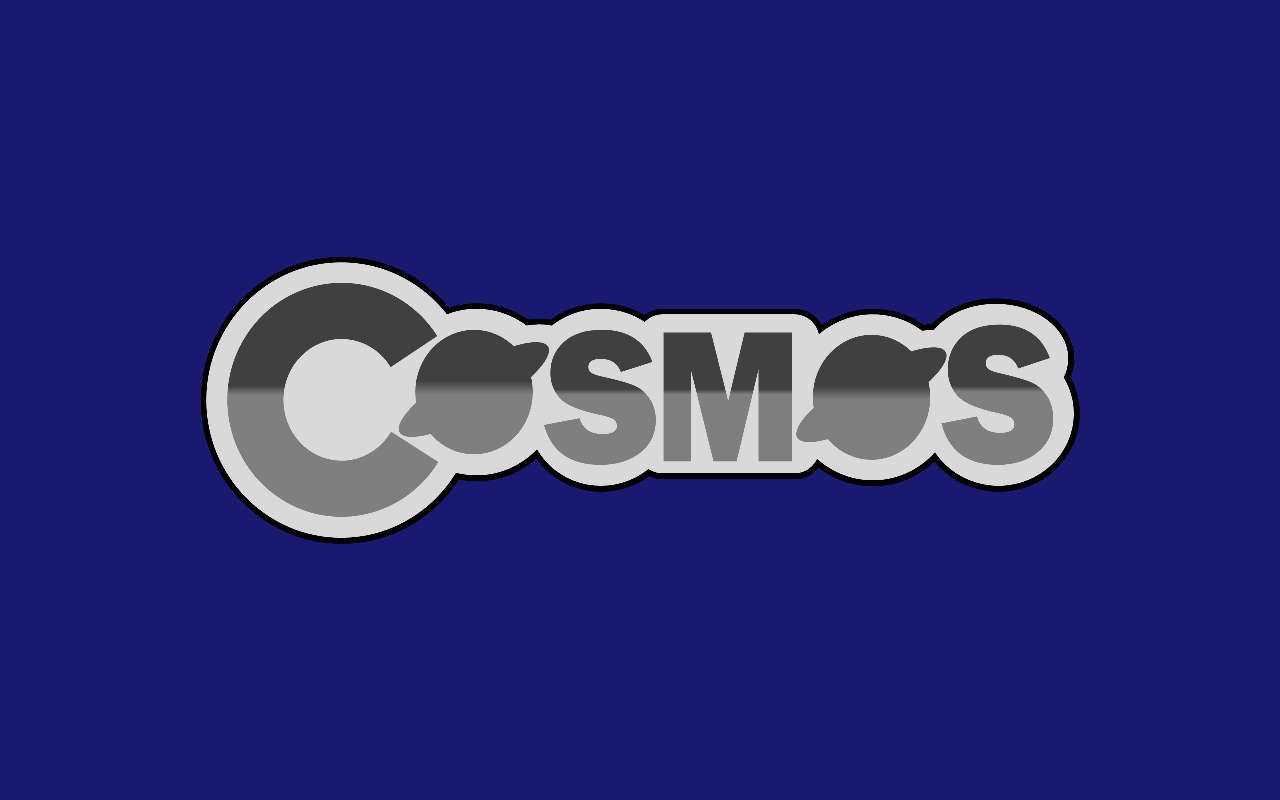

PNG files work the same way through the Png class, also an Image, so it goes wherever a Bitmap goes. The whole format is supported (grayscale, truecolor and palette, with or without alpha, interlaced or not), decoded by pure managed code (see the Credits page). Transparent pixels blend with what is already on the canvas:

/* logo.png is a PNG with transparency on the FAT partition mounted at /mnt */
Png logo = new Png("/mnt/logo.png");

/* Draw it scaled to half size, centered: transparent pixels blend with the background */
int width = logo.Width / 2;
int height = logo.Height / 2;
canvas.DrawImage(logo, (canvas.Width - width) / 2, (canvas.Height - height) / 2, width, height);

canvas.Display();

DrawImageAlpha draws with per-pixel alpha blending, and canvas.GetImage(x, y, width, height) does the reverse: it copies a region of the canvas back into a Bitmap.

Off-screen canvases

A Canvas does not have to be the screen. Constructing one with a size gives you a memory-backed canvas with the exact same drawing API: compose a tile or sprite once, then blit it to the screen with DrawCanvas as many times as you like:

Canvas canvas = Canvas.GetFullScreen();

canvas.Clear(Color.MidnightBlue);

/* Compose off-screen... */
Canvas tile = new Canvas(220, 220);
tile.Clear(Color.DarkSlateGray);
tile.DrawFilledCircle(Color.OrangeRed, 110, 110, 70);
tile.DrawString("off-screen", PCScreenFont.DefaultFont, Color.White, 30, 94);

/* ...then blit it to the screen wherever it is needed */
canvas.DrawCanvas(tile, (canvas.Width - 220) / 2, (canvas.Height - 220) / 2);

canvas.Display();

Reading pixels back

GetPointColor returns the color of a pixel already on the canvas:

canvas.DrawPoint(Color.Red, 69, 69);
Color color = canvas.GetPointColor(69, 69);   // Color.Red

3D rendering

3D is reachable on one display device only: the VMware SVGA II adapter, and only when it negotiates SVGA3D during FIFO initialization. Every other path, the UEFI framebuffer cosmos run boots on both architectures included, hands back a plain Canvas. QEMU's vmware-svga exposes no 3D capability either, so in practice this means real VMware Workstation or ESXi.

The virtual machine also has to present the adapter in its pre guest-backed form. Once it advertises SVGA_CAP_GBOBJECTS, 3D capabilities move to a register interface the driver does not speak, the 3D version in the FIFO stays 0 and the canvas comes back 2D. Lowering the hardware compatibility level of the machine is what keeps the adapter on the older model. This pair works on VMware Workstation 25:

virtualHW.version = "10"
mks.enable3D = "TRUE"

The version where an adapter starts advertising guest-backed objects belongs to the VMware build, so check the outcome rather than trusting a number. The kernel prints it on the serial port at boot:

[SVGAII] SVGA3D: fifocaps 0x77F hw 0x20001 rev 0x20001 caps0 0xBA enabled

disabled there means Canvas.GetFullScreen() will hand back a plain Canvas; lower the compatibility level until the line reads enabled.

Because the capability is only known at runtime, there is no GetFullScreen3D. A kernel acquires the canvas the usual way and tests what it got:

Canvas canvas = Canvas.GetFullScreen();

if (canvas is Canvas3D canvas3D)
{
    canvas3D.Camera = new Camera3D(new Vector3(0f, 0f, 5f), Vector3.Zero);

    canvas3D.ClearScene(Color.Black);
    canvas3D.DrawCube(Vector3.Zero, new Vector3(1f, 1f, 1f), Color.OrangeRed);
    canvas3D.DrawGrid(10, 1f, Color.DimGray);
    canvas3D.Display();
}

Canvas3D is a Canvas, so every 2D call still works on it and Display() presents the frame either way. Meshes come from CreateMesh and textures from CreateTexture(Image); DrawMesh(mesh, world) places one with a transform. Disposing a texture releases its device memory, and DrawMesh rejects a mesh that still maps it.

A kernel cannot implement Canvas3D itself. Its constructor is private protected and both implementations are internal, so the abstract members on it are call targets, not an extension contract.

A cube the mouse rolls

The DevKernel cube command builds a whole scene from those calls: a mesh with one color per face, the ground grid, and a flat triangle that points where the mouse pushes. The pointer drives the roll, so the further it sits from the center of the screen, the faster the cube rolls that way.

if (Canvas.GetFullScreen() is not Canvas3D canvas3D)
{
    Console.WriteLine("This display device has no 3D.");
    return;
}

MouseManager.SetScreenSize(canvas3D.Width, canvas3D.Height);
canvas3D.Camera = new Camera3D(new Vector3(0f, 2.6f, 4.6f), new Vector3(0f, 0.9f, 0f));

/* One quad per face, four vertices each: the faces share no vertices, so a
   corner does not blend three colors into an unreadable rotation. */
const float H = 0.5f;
ReadOnlySpan<Vector3> positions =
[
    new(H, -H, H), new(H, -H, -H), new(H, H, -H), new(H, H, H),         // +X
    new(-H, -H, -H), new(-H, -H, H), new(-H, H, H), new(-H, H, -H),     // -X
    new(-H, H, H), new(H, H, H), new(H, H, -H), new(-H, H, -H),         // +Y
    new(-H, -H, -H), new(H, -H, -H), new(H, -H, H), new(-H, -H, H),     // -Y
    new(-H, -H, H), new(H, -H, H), new(H, H, H), new(-H, H, H),         // +Z
    new(H, -H, -H), new(-H, -H, -H), new(-H, H, -H), new(H, H, -H),     // -Z
];

ReadOnlySpan<Color> faceColors =
[
    Color.Crimson, Color.MediumSeaGreen, Color.Gold,
    Color.DarkOrange, Color.DodgerBlue, Color.MediumOrchid,
];

Span<uint> colors = stackalloc uint[positions.Length];
Span<ushort> indices = stackalloc ushort[faceColors.Length * 6];

for (int face = 0; face < faceColors.Length; face++)
{
    uint argb = (uint)faceColors[face].ToArgb();
    int first = face * 4;

    for (int corner = 0; corner < 4; corner++)
    {
        colors[first + corner] = argb;
    }

    /* Two triangles per quad, sharing the 0-2 diagonal. */
    int index = face * 6;
    indices[index] = (ushort)first;
    indices[index + 1] = (ushort)(first + 1);
    indices[index + 2] = (ushort)(first + 2);
    indices[index + 3] = (ushort)(first + 2);
    indices[index + 4] = (ushort)(first + 3);
    indices[index + 5] = (ushort)first;
}

Mesh cube = canvas3D.CreateMesh(positions, colors, indices);

Quaternion orientation = Quaternion.Identity;
long previous = Stopwatch.GetTimestamp();

while (true)
{
    long now = Stopwatch.GetTimestamp();
    float elapsed = (float)(now - previous) / Stopwatch.Frequency;
    previous = now;

    /* Where the mouse points, read as a push on the ground plane: 0 at the
       center of the screen, 1 at the edges. */
    Vector3 drive = new(
        (MouseManager.X - canvas3D.Width * 0.5f) / (canvas3D.Width * 0.5f),
        0f,
        (MouseManager.Y - canvas3D.Height * 0.5f) / (canvas3D.Height * 0.5f));

    /* A cube rolling that way turns about the axis perpendicular to both the
       ground normal and the push, on top of a slow idle spin about Y. */
    Vector3 spin = (Vector3.Cross(Vector3.UnitY, drive) * 3.5f) + (Vector3.UnitY * 0.6f);
    orientation = Quaternion.Normalize(Quaternion.Concatenate(
        orientation,
        Quaternion.CreateFromAxisAngle(Vector3.Normalize(spin), spin.Length() * elapsed)));

    canvas3D.ClearScene(Color.FromArgb(0x10, 0x14, 0x20));
    canvas3D.DrawGrid(12, 0.5f, Color.FromArgb(0x30, 0x3A, 0x50));
    canvas3D.DrawMesh(
        cube,
        Matrix4x4.CreateFromQuaternion(orientation) * Matrix4x4.CreateTranslation(0f, 1f, 0f));
    canvas3D.Display();

    Thread.Sleep(16);
}

The full demo, cube mesh and direction arrow included, is SpinningCubeDemo.cs.

Current limitations

• Only 32-bit color depth is supported end to end; BMP loading additionally accepts 24-bit files.
• The video mode cannot be changed at runtime: the framebuffer resolution is whatever the bootloader negotiated at boot.
• Supported image formats are BMP (uncompressed, 24 or 32 bpp) and PNG; there is no JPEG support.
• No hardware acceleration on the framebuffer path: every 2D primitive is drawn pixel by pixel by the CPU.
• Canvas.DisableFullScreen() exists but there is no VGA text mode to fall back to on UEFI machines.

How it works

Canvas.GetFullScreen() returns the canvas for whichever display device the kernel found. Everywhere except a VMware SVGA II adapter that is the framebuffer the Limine bootloader requests from the firmware (UEFI GOP) before handing control to the kernel; on that adapter it is the canvas driving the device, which is a Canvas3D when the adapter negotiates 3D (see 3D rendering). This is why the same code works unmodified on x64 and ARM64: the kernel never touches a video card directly. Drawing calls land in a back buffer in ordinary memory; Display() copies the whole back buffer into the mapped framebuffer in one go. The kernel console (KernelConsole) renders Console output onto that same canvas with the default PSF font, calling Display() after every write.

Canvas API (shapes, text, images)      (Cosmos.Kernel.System.Graphics)
        │
Full-screen canvas ── shared with ── KernelConsole (Console output)
        │
Back buffer ──── Display() ────▶ framebuffer mapped by Limine (UEFI GOP, x64 & ARM64)
